First thing you want to know is this is not a simulator. It is a converter. You are still going to need your original narrow band 02 sensor installed in the exhaust and you are going to need to tap into that sensors wiring. Calling it a simulator is very misleading, to me anyway.
The packaging and description online about this is very limited. The only Company I could find selling it at the time actually charged more money to ship it then the product cost. (it could have fit in a small flat rate box but apparently they, even after I emailed them, don’t care.

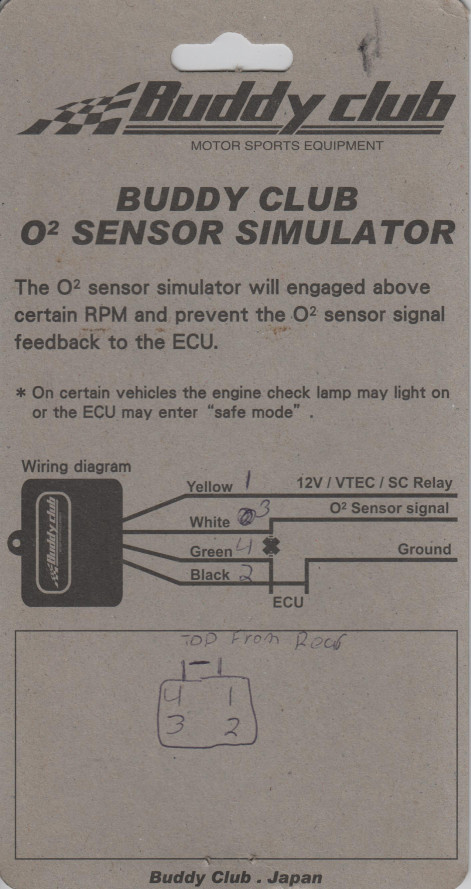

Below is an image of the wiring for anyone that wants to see it. I wired it to a connector so you can ignore my writing on it.
I was searching the market for 02 simulators because of the J32 swap in the EK. Its temporarily running OEM ecu and I just wanted to get the CEL off. I also didn’t want to run a narrow band 02 because I already have a wide band in the car and well, race car. I decided to give it a go because it was geared for Honda’s and I generally have a good opinion about Buddyclub products.
It does work. However its not a simulator. I expected a back box that would completely eliminate the need for a narrow band 02 sensor. I had to waste some money on the extra 02 and wiring to get this all together. Again, not a major issue but not what I was expecting and just added cost to a temp solution..
Hope this helps you.
JB
JBtuned.com
Buddy Club Lambda Sensor Simulator.
Integra Civic Delsol Prelude k20 k24 j32 j30 j35 lambda 02 simulator b18 b20 b16 ek9 dc2 dc4 accord
