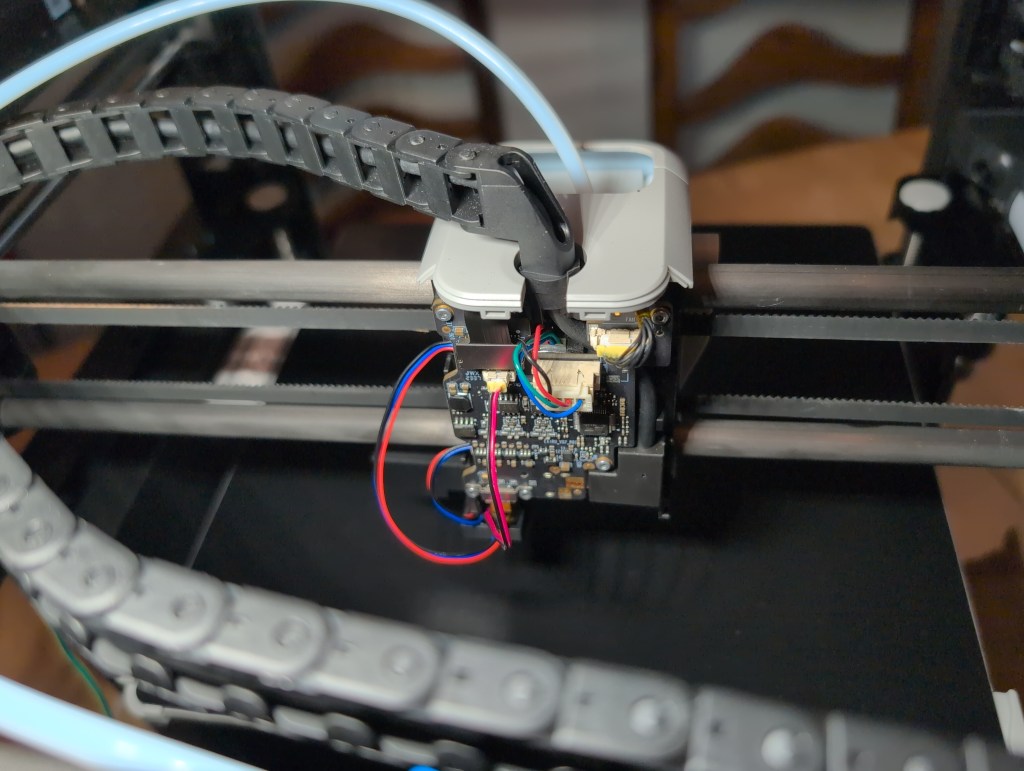

As of right now. Just adding the LCD, AP board, nic/network card onto the ap board, the AMS connection board and the x1e hot end boards we are able to fire up the x1e and calibrate the printer. LCD works great and once you toggle on the Ethernet switch and connect it to your switch you will have connectivity. Orca slicer connects with no issues.

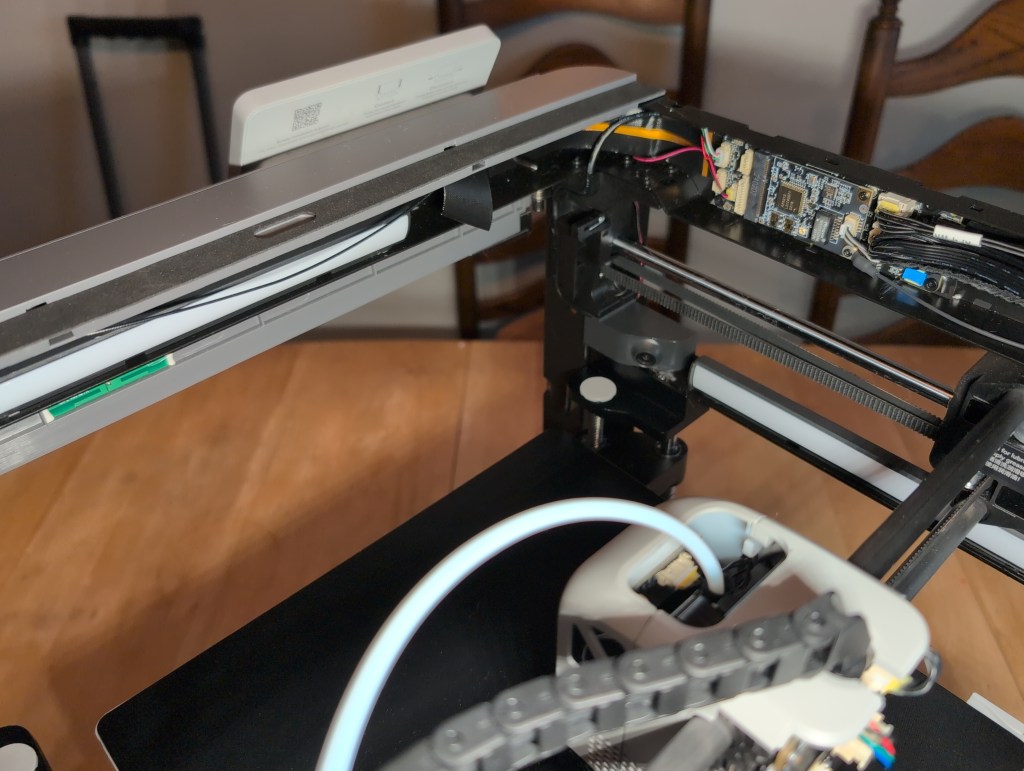

Here is the x1e front panel with x1e front light, X1e AP and nic boards all wired in. One of the biggest hurrdles you will run into is not all wiring is available from vendors/bambu. So far the front panel ribbon for the button board, main power supply wiring and the ground wire for the nic to the chassis.

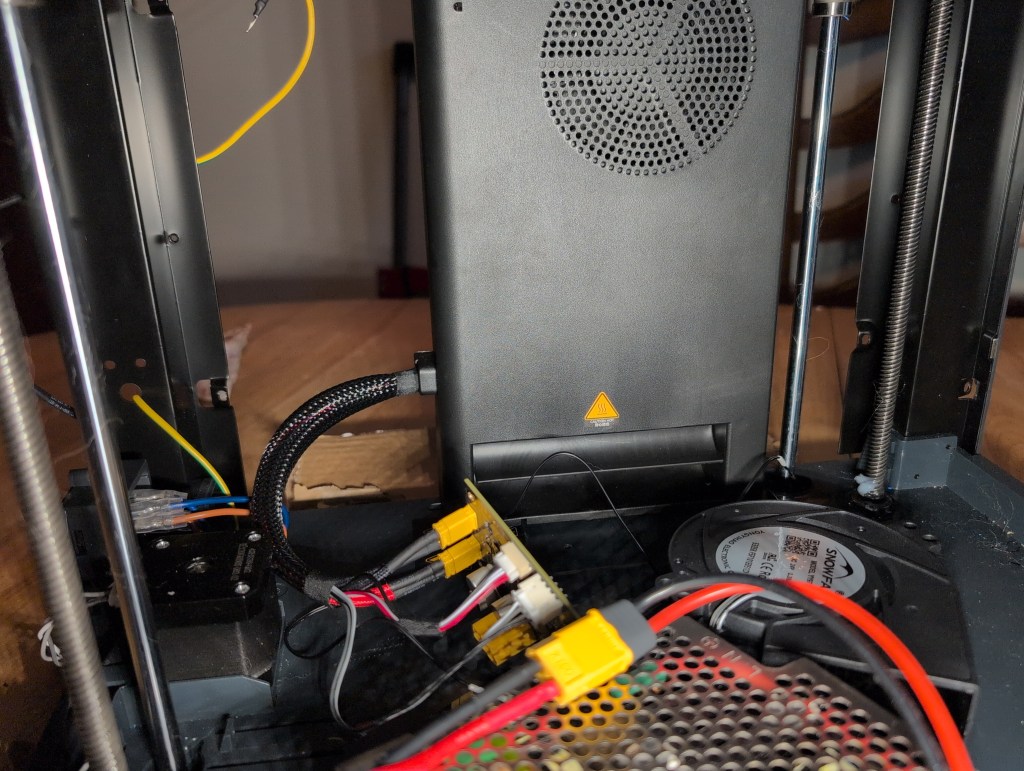

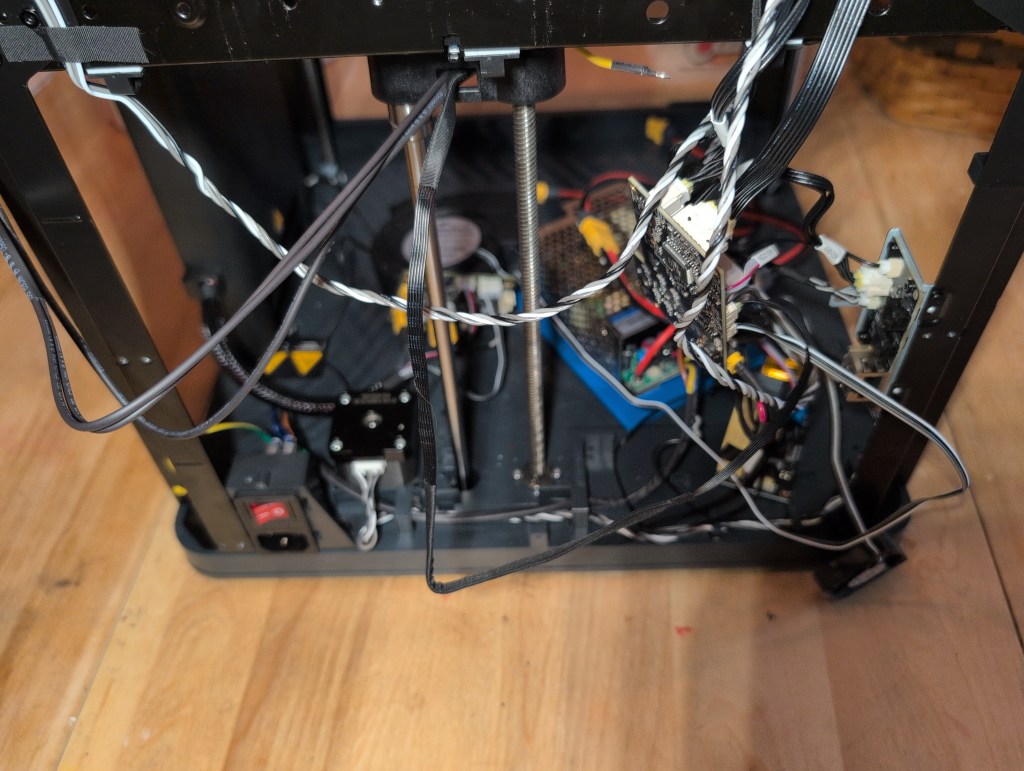

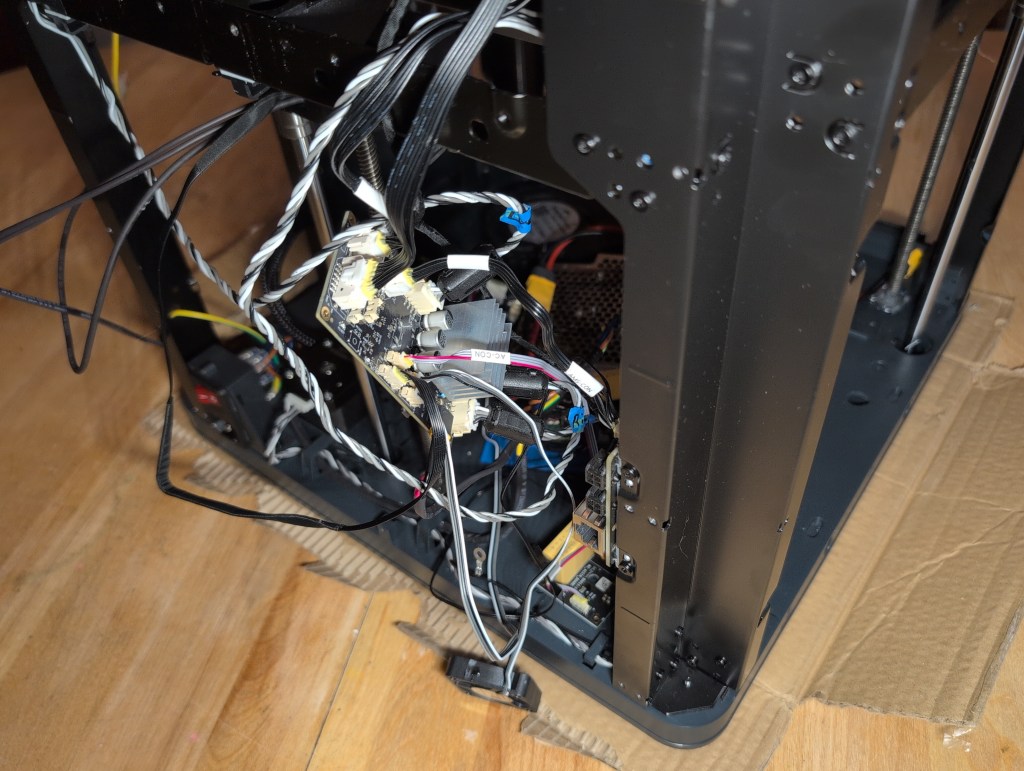

All the wires / boards are floating because there is no rear panel yet. The x1e rear panel is different the the other x and p series printers.

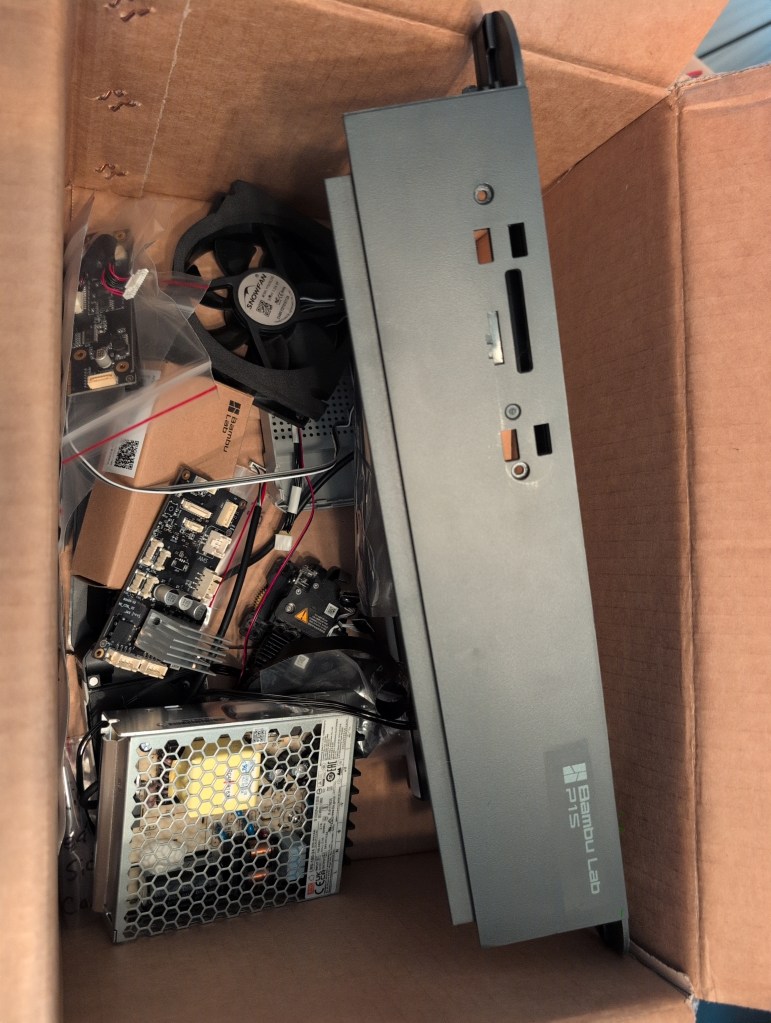

This is most of the stuff I removed from the p1s so far. Its basically everything.
