x1e Body Panels

I have listed below of the exterior metal panels but to truly clone a x1e without having a donor printer we are going to have to do some form of 3d printing.

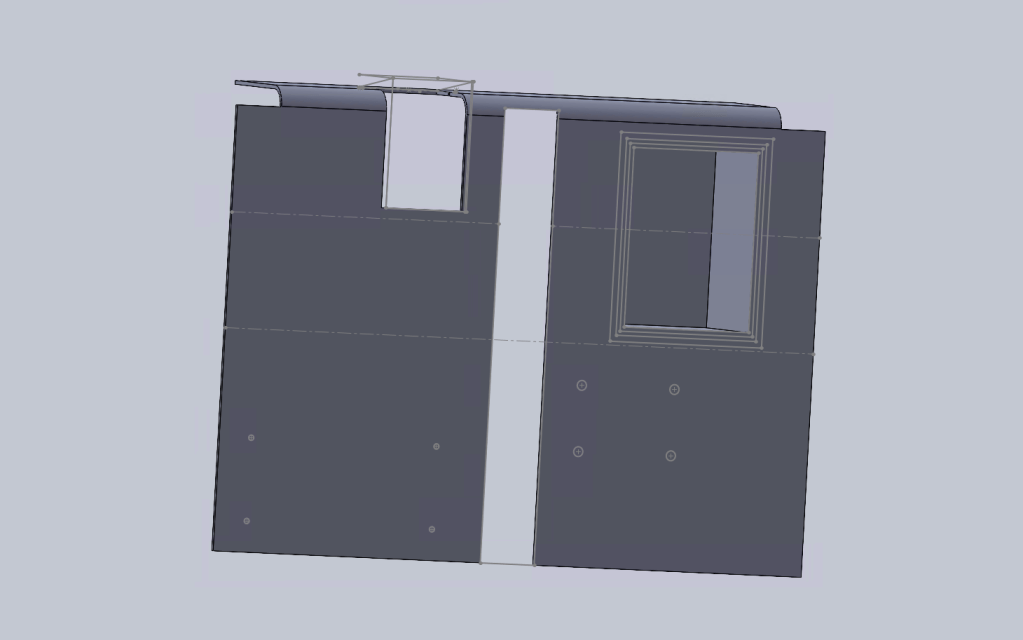

x1e replacement rear chamber plastic wall

I just made this real quick to start getting the design locked in. Once I get more measurements on the fan position and spacing a lot with the filter and filter door. I will add this file as free download that you can do what you want with.

Exterior panels you can purchase.

These panels come with the foam liners already installed. Not sure if these are for heat or sound but they are also metal like the x1c so they wont warp with heat like the P – series printers

Left Panel – FAS017

Right Panel – FAS016

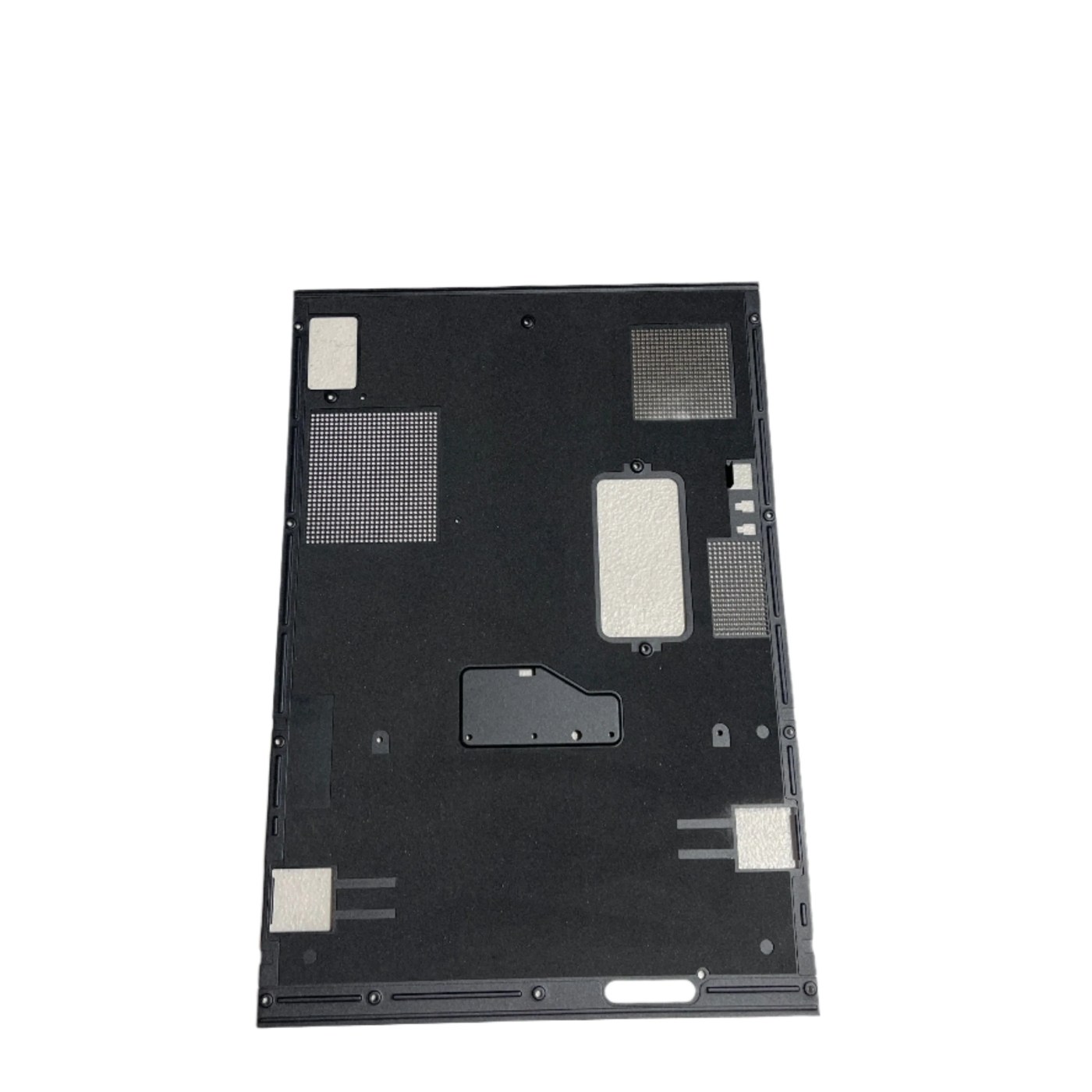

Rear Panel – FAS014

Front Panel – FAS015

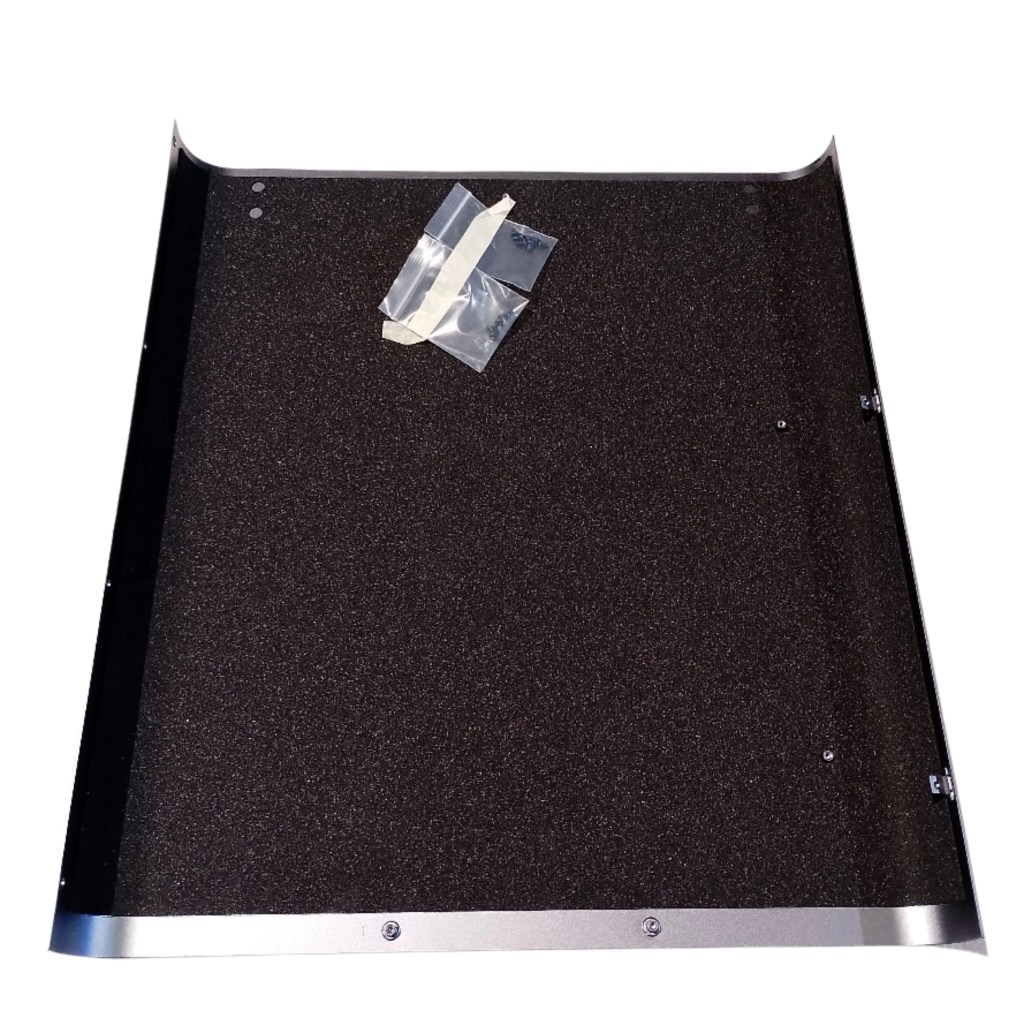

The side panels are very expensive (in my opinion). Made from metal but have a foam that covers the inside. I am not sure if the foam is for heat or noise. Its not very thick.

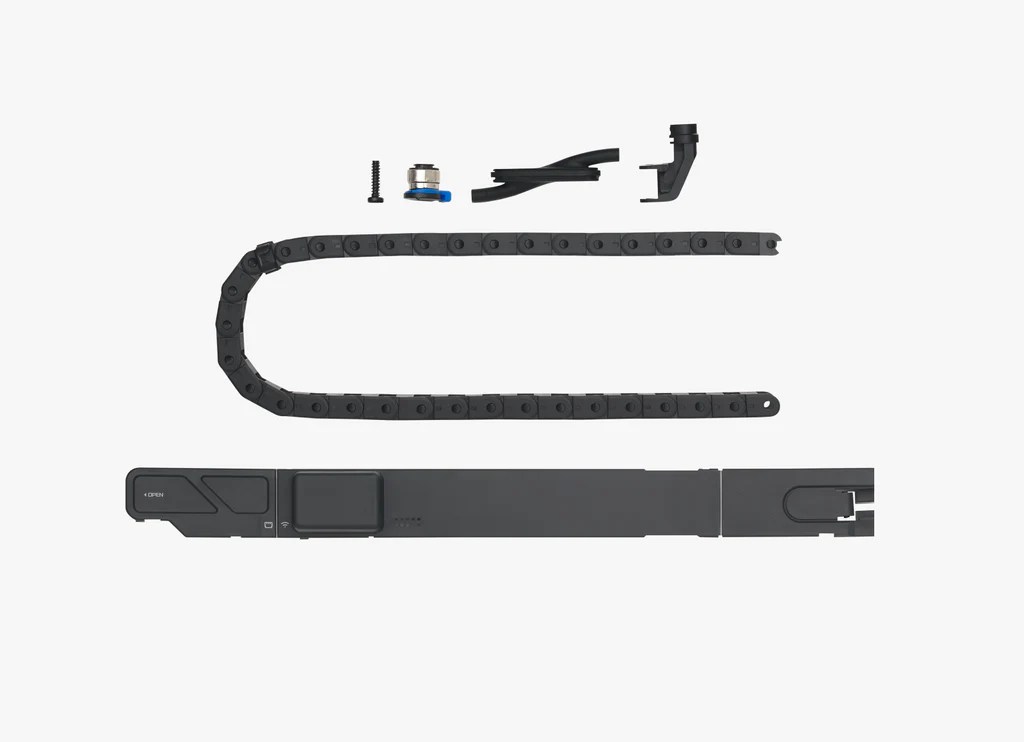

X1e Specific chain guard with the ethernet and wifi symbols on them is you really want a full clone.

Part number – FAC037
